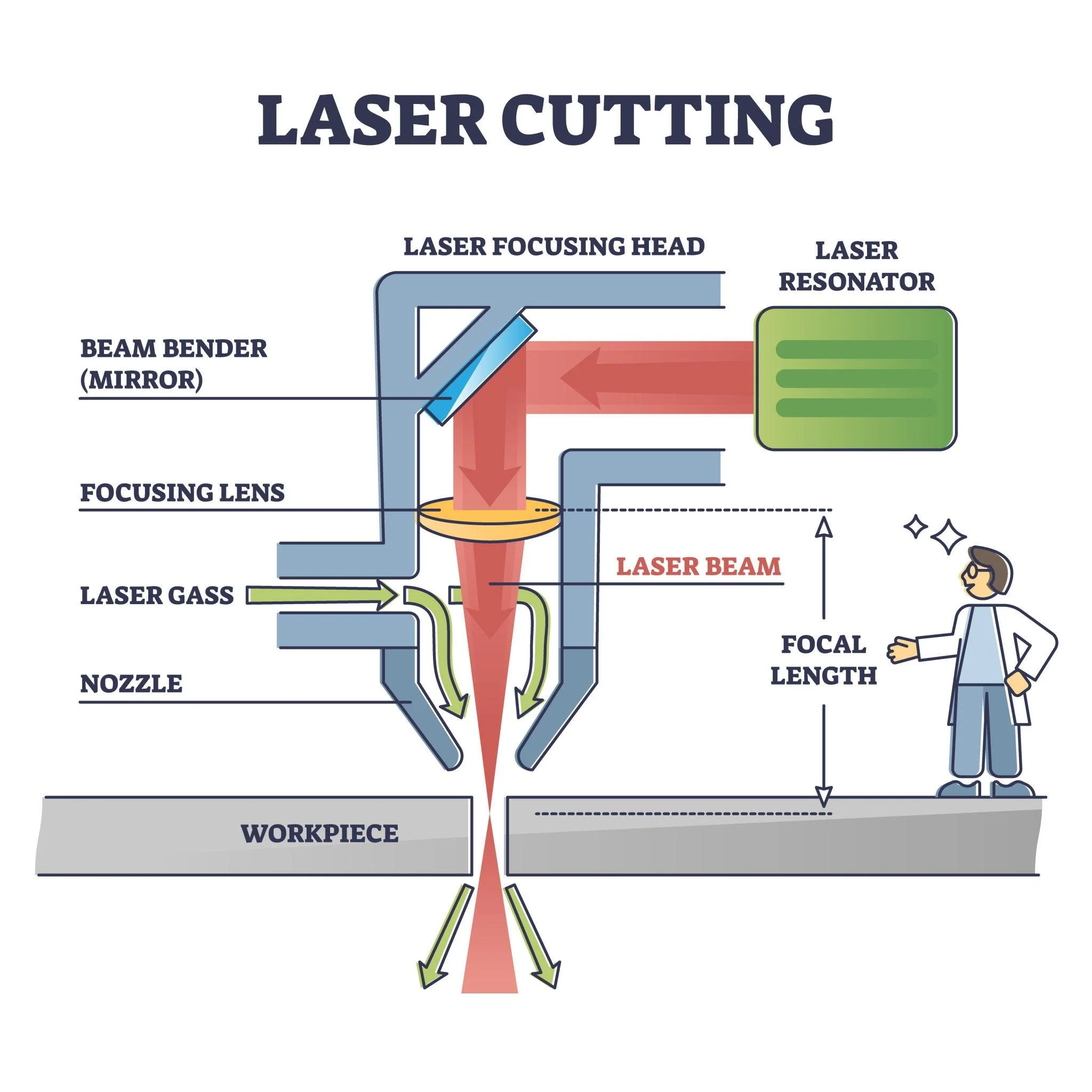

How a Laser Cutter Works

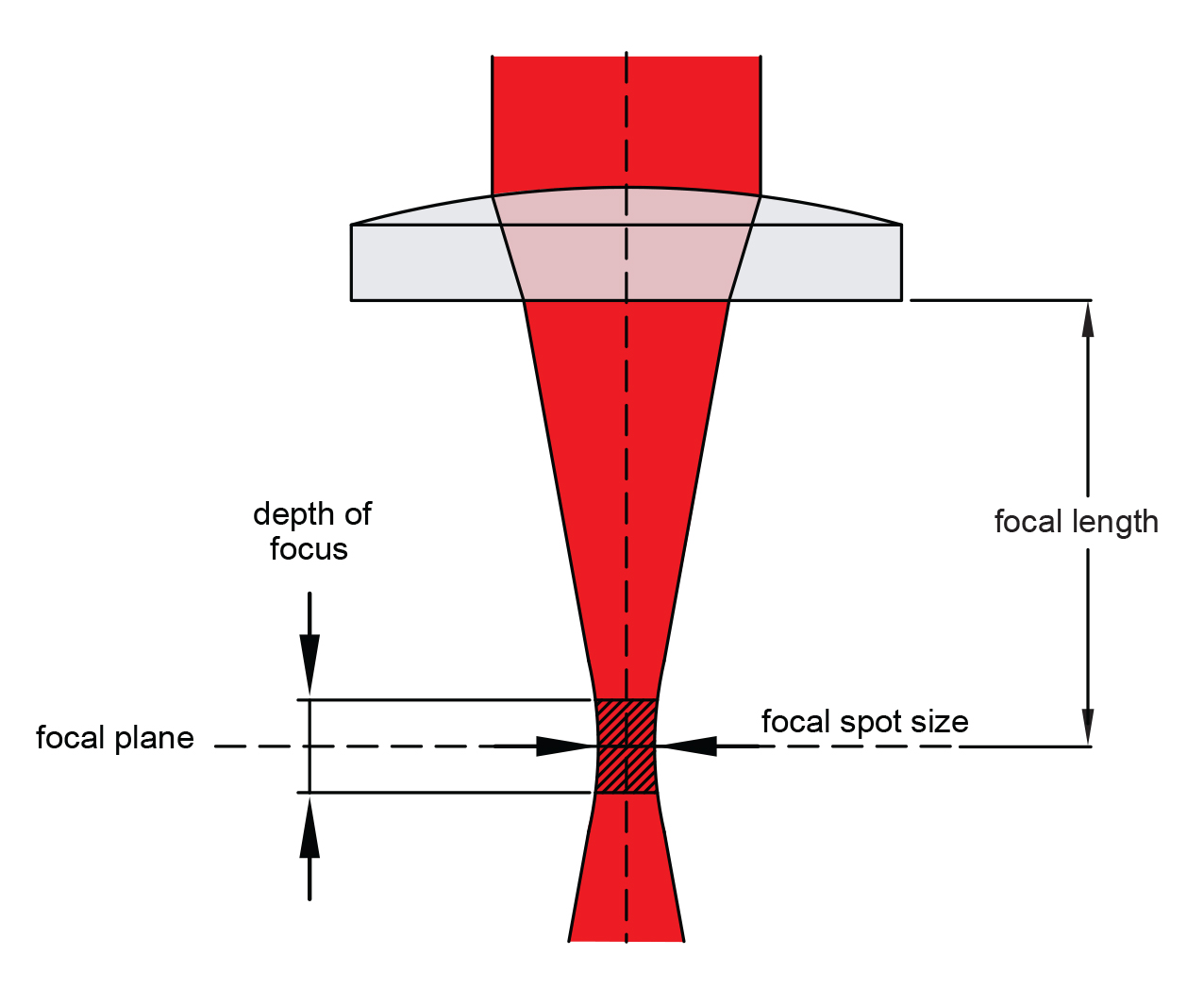

• Laser focuses on the material

• High heat cuts or engraves

• Air assist reduces burning

• Exhaust removes smoke

Cut vs Engrave

• Cut → thin vector lines

• Engrave → filled shapes or thick lines

• Engraving does not cut through

Color Coding Example

• Red → Cut

• Blue → Score

• Black → Engrave

Colors tell the laser what to do first.

Kerf Explained

• The laser removes material as it cuts

• This gap is called kerf

• Important for press-fit designs

Burn Marks & Masking

• Masking tape protects wood

• Cleaner edges

• Easier sanding

Example Projects

• Boxes & containers

• Keychains

• Phone stands

• Name plates & signs
